Fusion360 Add In - Timeline Sketch Visibility Toggle

A vibe coded Autodesk Fusion / Fusion360 add in which allows you to toggle sketch visibility from a timeline or viewport selection

Icon

Overview

Gone are the days of scrolling through long lists of sketches in the browser folder to toggle visibility, this add-in provides two new functions:

  1. Toggle Selected Sketch’s Visibility From the Timeline
    • Select sketch(s) within on the timeline and toggle their visibility on/off (no visit to the browser folder required)
  2. Toggle Selected Sketch’s Visibility From the Viewport
    • Select a sketch line/circle/arc within the viewport and toggle the parent sketch’s visibility on/off
  3. Bonus - Toggle Selected Sketch’s Visitility From the Browser
    • This tool can also toggle sketches from the browser, replicating the functionality of fusion’s built in visibility toggle

All functions are achieved through the same action, for which a button ( button ) is added to the Navigation Toolbar at the bottom of the viewport window:

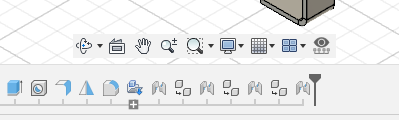

Navigation Bar Button

A keyboard Shortcut can also be added, albeit through a slightly different method to the usual process (method detailed under ‘Usage’)

For more info, visit the project’s GitHub: https://github.com/KieranReck/fusion360-timelinesketchvisibilitytoggle-addin/tree/main
